1. Modular Design
Standardized RM cores (IEC/EN 62317 compliant) enable easy assembly/disassembly for prototyping.
2. High Power Density
Optimized core geometry (e.g., RM5/RM8) reduces copper loss with shorter winding paths.
3. Thermal Performance
Open structure enhances airflow, supporting 1.2–2.0W/cm² power dissipation (vs. 0.8W/cm² in toroids).
4. Frequency Range
Ferrite cores (3C90/3F3) sustain stable operation at 20kHz–500kHz.
5. Scalability
Stackable cores (e.g., RM10x2) allow adjustable inductance/power rating (±15%).
Power Supplies: Telecom rectifiers (48V→12V DC/DC).
Automotive: EV onboard chargers (GaN-based designs).
Industrial: Welding inverters (high-current isolation).
Renewables: PV optimizer modules (MPPT tracking
YET focus in custom development and low volume methodology allow us to be one of the most flexible and agile manufacturers in the industry.
Our engineering staff has a vast wealth of professional knowledge.YET can deliver custom magnetics products on time to any country.
YET can design and build magnetics from customer design prints, re-engineer to enhance magnetics products to support customer needs, and reverse engineer magnetics products.
| ITEM | YET' P/N | Equivalent Substitutes | ||

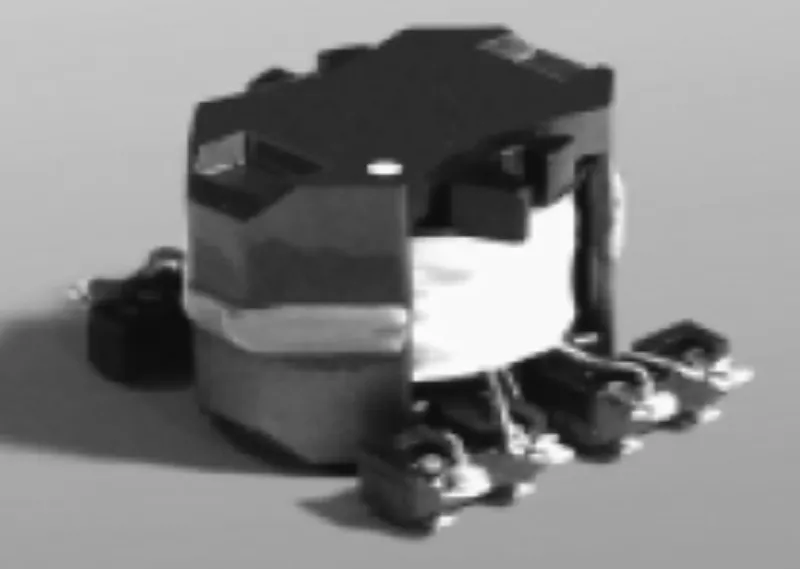

| RM6 TRANSFORMER | TDK | Würth | ||
| Electrical Parameters | Operating Frequency | 50kHz-500kHz | 50kHz-500kHz | 50kHz-500kHz |
| Rated Power | 5～30W | 5～25W | 5～30W | |
| Input Voltage | DC：12V～100V | DC：12V～60V | DC：12V～100V | |
| Output Voltage | 3.3VDC～24VDC | 3.3VDC～12VDC | 3.3VDC～24VDC | |
| Inductance (Primary) | 10μH～1.5mH | 10μH～1mH | 10μH～2mH | |
| Hi-pot | 1.5k~4kVAC (Pri.-Sec.) | 1.5k~4kVAC (Pri.-Sec.) | 1.5k~4kVAC (Pri.-Sec.) | |
| Efficiency | 86~93% | 88~93% | 85~92% | |
| Core Characteristics | Core Material | PC95 Ferrite | PC40 or PC44 | N87 or N92 Ferrite |
| Structure & Thermal Management | Cooling Method | Air | Air | Air |
| Insulation Class | Class F | Class F | Class F | |
| Temperature Range | -40℃~+150℃ | -40℃~+125℃ | -40℃~+125℃ | |
| Certifications & Compliance | Safety Certifications | CQC、3C | UL、CE、VDE | UL、CE |
| Environmental Certifications | RoHS、REACH | RoHS、REACH | RoHS、REACH | |
