SMD Inductors vs. Power Inductors: Key Differences

October.10,2025

In the fast-evolving electronics industry, inductors play a vital role in energy storage, filtering, and signal conditioning. Among the many inductor types available, SMD inductors and power inductors are two of the most widely used components — yet they serve very different purposes.

Understanding the key differences between SMD inductors and power inductors is essential for design engineers, procurement teams, and electronics manufacturers aiming to balance performance, cost, and board space efficiency. This article dives deep into their structure, performance characteristics, applications, and selection factors, helping you make better design and sourcing decisions.

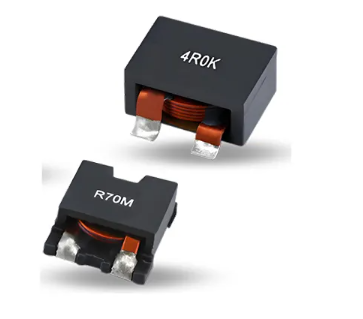

SMD Inductors.png



1. Understanding the Basics of Inductors

An inductor is a passive two-terminal component that stores electrical energy in a magnetic field when current flows through it. Its basic characteristics include:

  • Inductance (L) – measured in Henries (H), determines how much energy can be stored.

  • DC Resistance (DCR) – the resistance of the coil wire.

  • Rated Current – the maximum current the inductor can handle without performance degradation.

  • Self-Resonant Frequency (SRF) – the frequency where inductive and capacitive reactances cancel each other out.

In electronic circuits, inductors are commonly used for power filtering, DC-DC conversion, energy storage, and RF signal tuning.


2. What Are SMD Inductors?

SMD (Surface Mount Device) inductors are compact magnetic components designed for surface mounting directly on PCBs. They are a fundamental part of modern high-density and miniaturized electronics, such as smartphones, laptops, and IoT devices.

Key Characteristics of SMD Inductors

  • Compact form factor: Designed to save board space and support automated SMT assembly.

  • Low profile: Often as thin as 1–2 mm, suitable for slim and portable devices.

  • Lower current handling: Typically used for signal lines, RF circuits, and low-current power regulation.

  • Precision inductance: Ideal for stable signal processing and impedance matching applications.

  • Automated reflow soldering compatible: Reduces manual intervention and production costs.

SMD inductors are available in various shapes and packages (e.g., 0603, 0805, 1210), and may use ferrite or multilayer ceramic cores for different performance needs.

Common Applications

  • RF circuits and wireless communication modules

  • Noise suppression in digital devices

  • DC-DC converter feedback loops (low-current paths)

  • Portable consumer electronics

  • Automotive infotainment and sensor modules


3. What Are Power Inductors?

Power inductors, as the name suggests, are designed to handle large currents and store high energy efficiently. They are often used in power management circuits, such as DC-DC converters, voltage regulators, and power supply units.

Key Characteristics of Power Inductors

  • High current capability: Can handle several amps or even tens of amps of current.

  • Low DC resistance (DCR): Minimizes power loss and improves conversion efficiency.

  • Large magnetic core: Often uses ferrite or powdered iron to support higher flux density.

  • Shielded or unshielded options: Shielded types reduce EMI, unshielded types offer cost advantages.

  • Thermal stability: Designed to withstand higher operating temperatures in power systems.

Power inductors are generally larger than SMD inductors, and may come in through-hole or large surface-mount packages optimized for heat dissipation.

Common Applications

  • DC-DC converters and voltage regulators

  • Power supply filters in servers and base stations

  • LED drivers and automotive power modules

  • Industrial control systems and energy storage circuits

  • EV chargers and renewable energy converters


4. Core Differences Between SMD Inductors and Power Inductors

The following table summarizes the key distinctions between these two inductor types:

ParameterSMD InductorsPower Inductors
Mounting TypeSurface mount (SMT)Surface mount or through-hole
SizeVery compact (1–5 mm)Larger (5–30 mm)
Current RatingTypically <1 ARanges from 1 A to 50 A+
Inductance RangeμH to nHμH to mH
Core MaterialFerrite or ceramicFerrite, iron powder, or composite cores
DCR (DC Resistance)Relatively higherVery low to handle high currents
Operating Temperature0 °C – +85 °C−40 °C – +150 °C (depending on model)
ApplicationsSignal processing, EMI filteringPower management, DC-DC conversion
CostLower per unitHigher due to material and size
Design GoalCompactness and precisionPower handling and efficiency

In essence, SMD inductors focus on miniaturization, while power inductors emphasize current capacity and thermal reliability.


5. How to Choose Between SMD and Power Inductors

Selecting the right inductor requires balancing electrical, mechanical, and thermal parameters based on your circuit requirements.

Here are several key factors to consider:

1. Current and Power Handling

If your circuit involves high current or power transfer (e.g., buck or boost converters), choose power inductors with low DCR and high saturation current.
For small-signal filtering or RF applications, SMD inductors are typically sufficient.

2. Frequency Range

SMD inductors are ideal for high-frequency circuits like RF, Bluetooth, or GPS modules.
Power inductors are designed for low- to mid-frequency switching regulators, typically in the range of 100 kHz to 10 MHz.

3. Space and Weight Constraints

In space-limited designs such as wearables or smartphones, SMD inductors offer a clear advantage.
Power inductors, while larger, are critical for robust power delivery systems.

4. Thermal and Environmental Conditions

If the inductor will operate under high temperatures, vibration, or humidity (as in automotive or industrial systems), power inductors with shielded construction and high-temp materials are preferred.

5. Cost and Production Considerations

For mass-produced consumer devices, SMD inductors reduce cost through automation and compact design.
However, in high-reliability or mission-critical power systems, investing in high-quality power inductors improves overall efficiency and lifespan.


6. Inductor Design Trends and Technological Advances

The gap between SMD and power inductors is narrowing as new materials and design technologies emerge. Key trends include:

Miniaturized Power Inductors

Manufacturers are developing miniature power inductors that combine high current handling with SMD packaging, using composite magnetic materials to achieve both compactness and performance.

Low-Loss Magnetic Materials

Advanced ferrite and metal composite cores help reduce DCR and improve temperature stability — a major driver for high-efficiency power supply designs.

Automotive-Grade Inductors

With the rise of EVs and ADAS systems, both AEC-Q200 qualified SMD and power inductors are gaining traction. These offer high vibration resistance and extended temperature ratings up to 150 °C.

Integrated Magnetics

Future designs are moving toward integrated magnetics — combining inductors and transformers in a single package to save board space and reduce EMI.


7. Procurement and Sourcing Considerations

For purchasing departments and component sourcing professionals, the following aspects are crucial when comparing SMD and power inductors:

  • Supplier certification: Ensure compliance with ISO, RoHS, and REACH standards.

  • Customization options: Some manufacturers offer custom inductance values or package sizes for OEM applications.

  • Price stability: Power inductors involve more raw materials (ferrite, copper), so their cost may fluctuate with market trends.

  • Inventory management: SMD inductors are typically stocked in reels for automated SMT lines; power inductors may require bulk or tray packaging.

  • Testing and reliability: Verify with inductor testing reports (DCR, L, Irms, Isat) for quality assurance.

If your design involves DC-DC converter power stages, voltage regulators, or LED drivers, prioritize power inductor suppliers known for consistent electrical performance.
For RF circuits, signal filtering, and portable devices, SMD inductor suppliers offering miniaturized and high-frequency components are more suitable.


8. Conclusion

The difference between SMD inductors and power inductors lies not just in size or current capacity — but in their core design philosophy.

  • SMD inductors emphasize compactness, precision, and automated assembly.

  • Power inductors prioritize energy storage, efficiency, and reliability in high-current applications.

As electronic devices continue to demand smaller form factors and higher performance, both inductor types will keep evolving. Selecting the right one depends on your circuit requirements, thermal design, and cost-performance balance.

Whether you’re designing a smartphone power module or an EV control system, understanding these distinctions ensures optimized circuit performance and reliable long-term operation.
