High saturation current.
General purpose inductors
Low cost design
Tin plated leads.
Varnish coated or UL tube
Operating temperature:-40℃～125℃(Including coil's temperature rise)
Customer's specifications are welcome
| Part No. | Inductance(µH) | DCR(mΩ) | Saturation current(A) | Temperature rise current(A) | ||
| ±20% | Typical | Max | Typical | Typical | ||

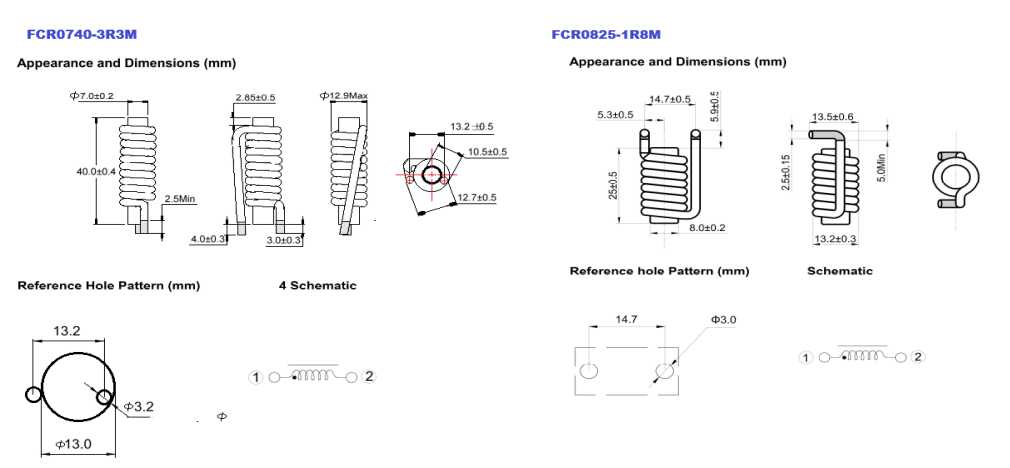

| FCR0740-3R3M | 3.30 | 1.10 | 1.30 | 31.0 | 30.0 | |
| FCR0825A-3R4M | 1.80 | 1.00 | 1.20 | 33.0 | 34.0 | |
