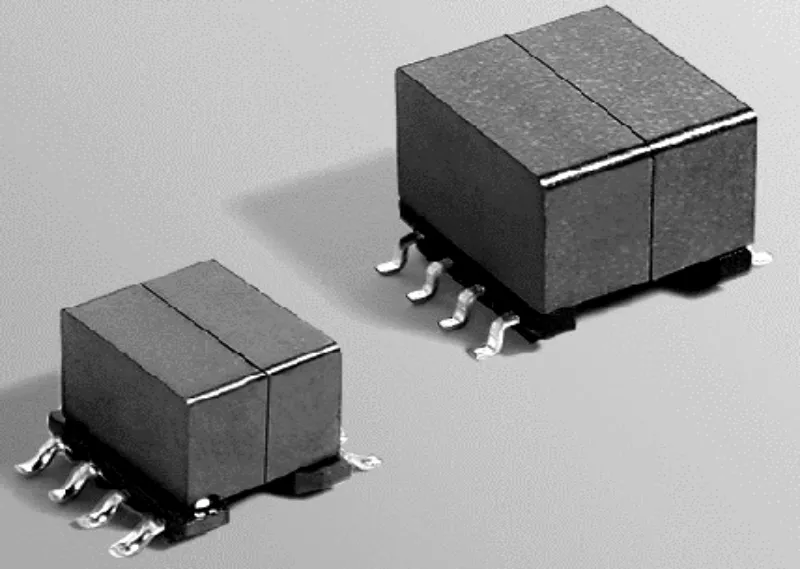

1. Ultra-Compact SMD Design
7.0×7.0×4.0mm footprint for space-critical PCBs (reflow-compatible).
2. High-Frequency Performance
Stable at 500kHz–3MHz (Ni-Zn ferrite core, Lsat ≥10μH).
3. Low Core Loss
<15mW/cm³ @ 1MHz, 25°C (PC95 material).
4. Precision Windings
Tight tolerance (±5%) with triple-insulated wire (UL 1446).
5. Automotive Grade
AEC-Q200 qualified (-55°C to +150°C).
RF Power Modules: Class-D/E amplifiers (5–20W).
5G Infrastructure: DC-DC converters in mMIMO antennas.
Wearables: Wireless charging Rx coils (WPC 1.3).
Automotive ADAS: Isolated CAN bus power (12V→5V).
Note: Optimized for high-density, high-reliability HF circuits.
YET focus in custom development and low volume methodology allow us to be one of the most flexible and agile manufacturers in the industry.
Our engineering staff has a vast wealth of professional knowledge.YET can deliver custom magnetics products on time to any country.
YET can design and build magnetics from customer design prints, re-engineer to enhance magnetics products to support customer needs, and reverse engineer magnetics products.
| ITEM | YET' P/N | Equivalent Substitutes | ||
| EP7 Push-Pull transformer | TDK | Würth | ||
| Electrical Parameters | Operating Frequency | 50kHz-500kHz | 100kHz-300kHz | 50kHz-500kHz |
| Rated Power | 30～50W | 10～200W | 20～150W | |
| Input Voltage | AC：90V～240V | DC：12V～72V | DC：12V～72V | |
| Output Voltage | 5VDC～48VDC | 5VDC～48VDC | 5VDC～48VDC | |
| Inductance (Primary) | 50μH～1000μH | 50μH～1000μH | 90μH～1000μH | |
| Hi-pot | 2k～4kVAC (Pri.-Sec.) | 3kVAC/60s (Pri.-Sec.) | 3kVAC/60s (Pri.-Sec.) | |
| Efficiency | 90~95% | 88~94% | 90~95% | |
| Core Characteristics | Core Material | PC95 Ferrite | PC95 oe PC200 | N87 or N92 Ferrite |
| Structure & Thermal Management | Cooling Method | Air | Air | Air |
| Insulation Class | Class F | Class F | Class F | |
| Temperature Range | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ | |
| Certifications & Compliance | Safety Certifications | CQC、3C | UL、CE、VDE | UL、CE |
| Environmental Certifications | RoHS、REACH | RoHS、REACH | RoHS、REACH | |
EP7 SERIES SMD TRANSFORMER.pdf
