Power Inductors vs. Transformers: Key Differences

October.10,2025

In the realm of power electronics, power inductors and transformers are two fundamental magnetic components, yet they serve distinct functions. Selecting the right component is crucial for designing efficient power systems, reducing energy loss, and ensuring circuit stability.This article provides an in-depth comparison of power inductors and transformers, covering their structure, functionality, applications, design considerations, and procurement insights.

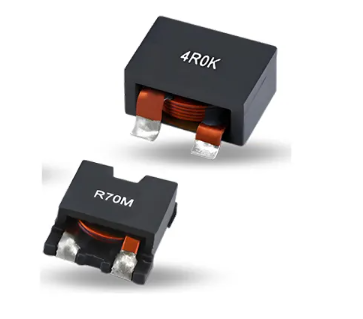

power inductors.png


1. Basic Definitions

1.1 Power Inductors

A power inductor is a passive magnetic component that stores energy in a magnetic field when electrical current passes through its coil. Its primary roles include:

  • Energy storage in DC-DC converters

  • Smoothing current to reduce ripple

  • Filtering in power supply circuits

Key features of power inductors:

  • High current handling

  • Low DC resistance (DCR)

  • Thermal stability for high-power applications

1.2 Transformers

A transformer is a magnetic device designed to transfer electrical energy between two or more circuits via electromagnetic induction. Its primary functions include:

  • Voltage conversion (step-up or step-down)

  • Isolation between circuits

  • Impedance matching in AC systems

Key features of transformers:

  • Multiple windings for energy transfer

  • Ability to change voltage levels

  • Isolation capability to protect sensitive electronics

While both components rely on magnetic fields, their operating principles and circuit roles are different.


2. Structural Differences

2.1 Power Inductor Structure

Power inductors generally consist of:

  • Magnetic core: Ferrite, iron powder, or composite material

  • Copper winding: Single coil, designed to minimize DCR

  • Shielding: Optional, to reduce electromagnetic interference (EMI)

  • Package: Surface-mount (SMD) or through-hole

The design emphasizes high current capacity and minimal energy loss, with compact footprints for integration into power modules.

2.2 Transformer Structure

Transformers have:

  • Primary and secondary windings: For voltage transformation

  • Core material: Laminated steel, ferrite, or amorphous alloys

  • Insulation: Between windings for electrical isolation

  • Optional shielding: For EMI reduction

Transformers are typically larger than power inductors due to multiple windings and isolation requirements.

Key structural takeaway:

  • Power inductors = single winding for energy storage

  • Transformers = multiple windings for energy transfer


3. Functional Differences

FeaturePower InductorTransformer
Primary FunctionEnergy storage, current smoothingEnergy transfer, voltage conversion
Current HandlingHigh DC currentAC or pulsed current
Voltage ConversionDoes not change voltage significantlyStep-up or step-down voltage
IsolationNoneElectrical isolation between circuits
Energy StorageMagnetic energy stored temporarilyEnergy transferred between windings
Circuit ApplicationsDC-DC converters, power filters, chokesPower supplies, voltage regulators, isolation circuits


4. Applications Comparison

4.1 Power Inductors

  • DC-DC Converters: Boost, buck, and buck-boost converters

  • Power Supply Filters: Reducing ripple in switching regulators

  • LED Drivers: Smooth current to LEDs

  • Automotive Electronics: Voltage regulation and noise suppression

4.2 Transformers

  • AC-DC Power Supplies: Step-down mains voltage for electronics

  • Isolation Transformers: Protect sensitive circuits from high voltage

  • Impedance Matching: In audio and RF applications

  • High-Power Converters: Flyback or forward converter topologies


5. Design Considerations

5.1 Inductor Selection Factors

  • Inductance value (L): Determines energy storage capacity

  • Saturation current (Isat): Maximum current before core saturation

  • DC resistance (DCR): Impacts efficiency and thermal performance

  • Operating temperature: Critical for automotive or industrial systems

  • Shielding requirements: EMI-sensitive circuits

5.2 Transformer Selection Factors

  • Turns ratio: Determines voltage step-up or step-down

  • Core material: Influences efficiency and frequency response

  • Winding configuration: Affects leakage inductance and isolation

  • Power rating: Must match load requirements

  • Thermal management: Transformers generate heat under high power


6. Key Performance Metrics

Power Inductors:

  • Inductance (μH to mH)

  • Rated current (A)

  • Saturation current (Isat)

  • DCR (mΩ)

  • Self-resonant frequency (SRF)

Transformers:

  • Voltage ratio

  • Turns ratio

  • Load current rating

  • Leakage inductance

  • Efficiency (%)

7. Differences in Frequency Behavior

  • Power Inductors: Usually optimized for low to mid-frequency ranges (tens of kHz to a few MHz), commonly used in switching regulators.

  • Transformers: Operate efficiently across a wider frequency range, including high-frequency transformers for switch-mode power supplies (SMPS) and low-frequency 50/60 Hz isolation transformers.


8. Thermal and Efficiency Considerations

  • Power Inductors: Heat is generated mainly from DC resistance (I²R loss); high-efficiency designs minimize DCR and use high-saturation cores.

  • Transformers: Heat comes from winding resistance and core losses; efficient transformers reduce hysteresis and eddy current losses through high-quality cores and laminated structures.


9. Procurement and Sourcing Insights

For buyers and engineers, selecting the right magnetic component involves:

  1. Certifications & Compliance: ISO, RoHS, REACH, AEC-Q200 for automotive-grade parts.

  2. Supplier Reliability: Evaluate DCR, Isat, turns ratio, efficiency reports.

  3. Customization: OEMs may need custom inductance, package size, or voltage rating.

  4. Packaging & Assembly: SMD inductors and small transformers are SMT-compatible; larger transformers may require manual assembly.

  5. Pricing & Lead Time: Power inductors are generally less expensive than custom high-power transformers but still require careful inventory planning.


10. Common Misconceptions

  1. “All magnetic components can replace each other” – False. Inductors and transformers serve distinct functions: energy storage vs energy transfer.

  2. “Inductance value alone determines performance” – False. Current rating, saturation, DCR, and core material are equally important.

  3. “Transformers always handle more power than inductors” – False. High-current power inductors can manage substantial power in DC-DC converters despite smaller size.


11. Future Trends

  • Miniaturized High-Power Inductors: Compact SMD power inductors for high-current applications.

  • Integrated Magnetics: Combining transformers and inductors in a single package to save space.

  • Advanced Core Materials: High-frequency ferrite and amorphous alloys improve efficiency and reduce losses.

  • Automotive & EV Applications: Growing demand for high-reliability, high-current components with extended temperature tolerance.


12. Conclusion

While power inductors and transformers share magnetic principles, their roles in electronic circuits are fundamentally different:

  • Power inductors store energy and regulate current, critical for DC-DC converters and power filters.

  • Transformers transfer energy and provide voltage conversion and isolation, essential for AC-DC power supplies and isolation circuits.

Choosing the right component requires careful attention to current rating, thermal performance, frequency range, and efficiency.

For engineers, designers, and procurement specialists seeking high-quality magnetic components with reliable performance, YET provides a comprehensive selection of power inductors and transformers designed to meet modern electronics demands, combining efficiency, durability, and competitive cost.
