In the modern world of electronics, the need for clean and reliable signal transmission is more critical than ever. With the proliferation of high-speed digital circuits, sensitive analog devices, and industrial equipment, electromagnetic interference (EMI) has become a pervasive challenge. One of the most effective solutions to mitigate EMI is the use of common mode chokes. Despite their widespread use, many engineers and hobbyists remain unclear about how they work, their types, applications, and selection criteria. This guide provides a comprehensive overview of common mode chokes to help you understand their role in electronic circuits.
A common mode choke (CMC) is an electrical component designed to suppress unwanted common mode noise signals on power or signal lines while allowing differential signals to pass with minimal attenuation. Essentially, it is a type of inductor that filters interference affecting multiple lines simultaneously.
Unlike standard inductors, which resist changes in current on a single line, common mode chokes specifically target currents that are common to two or more conductors—meaning the same in-phase noise signal present on each conductor. By impeding these currents, CMCs prevent them from reaching sensitive parts of the circuit or propagating to external equipment.
A typical common mode choke consists of two or more coils wound on a shared magnetic core. The design leverages magnetic coupling:
Differential mode currents (the normal currents powering your device) flow in opposite directions through the coils. These opposing magnetic fields cancel each other out in the core, allowing differential signals to pass unimpeded.
Common mode currents (noise currents that are in phase on each line) generate a net magnetic field in the core, which produces inductive impedance that resists the flow of these unwanted signals.
This elegant mechanism ensures that the power or signal lines maintain their intended function while EMI is significantly reduced.
Common mode chokes are versatile and appear across various industries and electronic systems. Below are some primary applications:
Power supply circuits are often sources of EMI due to high-frequency switching. CMCs are installed on input or output lines to suppress noise from switching regulators, ensuring compliance with EMC (Electromagnetic Compatibility) standards.
High-speed data buses such as USB, Ethernet, HDMI, and CAN lines are susceptible to common mode noise. Using CMCs helps maintain data integrity, reduce errors, and prevent signal degradation in sensitive equipment.
Industrial machinery often generates significant EMI, which can disrupt nearby sensitive devices. Common mode chokes are implemented in motor drives, inverters, and PLCs to mitigate these effects.
Modern vehicles integrate numerous electronic systems—from infotainment to safety sensors. CMCs help filter noise in communication lines (CAN, LIN, FlexRay) and power lines, ensuring system reliability and regulatory compliance.
Photovoltaic inverters and wind turbine systems produce common mode noise that can affect grid quality and connected equipment. Common mode chokes in these systems reduce harmonic emissions and meet IEC standards.
Selecting the right CMC requires understanding the types available, each with unique characteristics:
These are compact chokes designed for PCB mounting, ideal for modern electronics where space is limited. They are widely used in USB, HDMI, and power line applications. Advantages include low profile and compatibility with automated assembly.
Larger and more robust, these chokes handle higher currents and are often used in power electronics, industrial systems, and automotive applications. They provide higher inductance and superior heat dissipation.
Toroidal CMCs feature a circular core, providing high inductance with minimal leakage flux. They are highly efficient, suitable for high-frequency suppression, and commonly found in switch-mode power supplies and audio equipment.

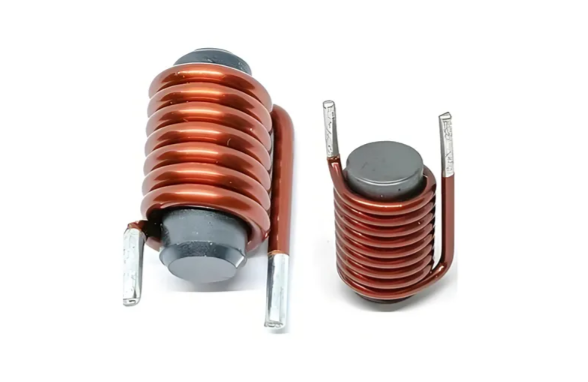

These traditional designs are easy to manufacture and integrate into circuits requiring moderate EMI suppression. They are cost-effective but occupy more PCB space compared to toroidal types.
When choosing a CMC for your application, consider several critical factors:
Impedance Rating
The higher the impedance at the noise frequency, the more effectively the CMC suppresses EMI. Ensure the choke's rated impedance covers the frequencies present in your system.
Current Rating
The CMC must handle the normal operating current without saturation or excessive heat generation. Exceeding the rated current can reduce filtering performance and damage the component.
Voltage Rating
For power lines, ensure the choke’s insulation withstands peak voltages. Safety margins are essential in high-voltage applications.
Frequency Range
Different CMCs operate efficiently over specific frequency ranges. Select one that targets the dominant noise frequency in your system, whether in kHz for switching regulators or MHz for high-speed data lines.
Physical Size and Mounting
For compact devices, surface-mount options are preferable, while industrial equipment may allow for larger through-hole or toroidal designs.
Core Material
Ferrite cores are most common due to their high permeability and efficiency at suppressing high-frequency noise. However, for low-frequency applications, powdered iron or nanocrystalline cores may be better suited.
Enhanced EMI Suppression: Reduces both conducted and radiated noise in complex circuits.
Signal Integrity Maintenance: Protects high-speed communication lines from noise-induced errors.
Compliance with Standards: Helps electronic devices meet EMC and automotive regulations.
Versatility: Suitable for a broad range of power and signal applications, from consumer electronics to industrial machinery.
While common mode chokes are highly effective, engineers should be aware of certain limitations:
Saturation Risk: Exceeding the current rating can saturate the core, reducing effectiveness.
Temperature Sensitivity: High operating temperatures may affect core material properties.
Insertion Loss: Although differential signals pass mostly unaffected, some insertion loss may occur, especially in high-frequency circuits.
Size Constraints: High-current or low-frequency CMCs can be physically large, limiting their use in compact designs.
Placement: Install CMCs as close as possible to the source of noise, typically at the input or output of a device.
Trace Routing: Minimize loop area in PCB traces connected to the choke to reduce radiated EMI.
Grounding: Ensure proper grounding and shielding of nearby components to maximize effectiveness.
Thermal Management: Avoid placing CMCs near heat-sensitive components if they handle high currents.
It is important to differentiate common mode chokes from differential mode filters:
Common Mode Chokes: Target noise signals that appear in phase on multiple conductors (common mode noise).
Differential Mode Filters: Target noise signals that occur between conductors (differential mode noise).
Many systems require a combination of both to achieve comprehensive EMI suppression. Engineers often use a CMC in conjunction with capacitors or differential inductors to form LC filter networks for optimal noise attenuation.
As electronics continue to evolve, CMCs are also advancing:
Miniaturization: New ferrite materials and PCB-integrated designs allow for smaller footprints.
High-Frequency Performance: Improved core materials extend effective suppression into GHz ranges, crucial for 5G and IoT devices.
Automotive-Grade Reliability: Advanced automotive CMCs are designed to withstand vibration, temperature extremes, and high-current transients.
Integration with Power Modules: Power electronics increasingly integrate CMCs directly into converter modules for compactness and improved EMI control.
Common mode chokes are essential components for modern electronic design, providing effective EMI suppression without disrupting normal circuit operation. From consumer electronics to automotive systems, industrial machinery, and renewable energy applications, they ensure reliable performance, regulatory compliance, and signal integrity. Understanding their working principle, types, selection criteria, and installation practices allows engineers to optimize designs for both performance and safety.
